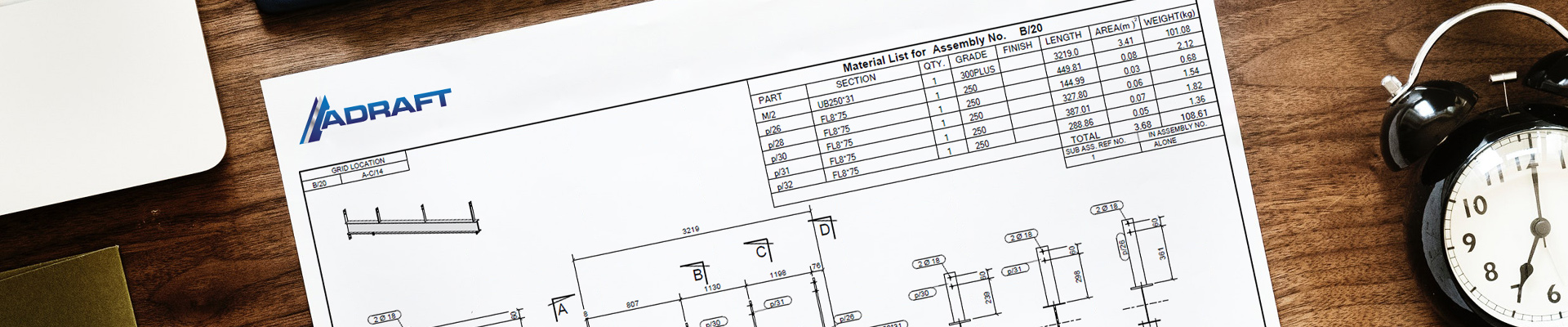

Providing easy to read shop drawings to fabricators

Providing our clients the latest in Technology

3D Models on the Smart phones or tablets of your installers that they can rotate select objects and get detailed information Giving them a clear picture of the steel they are installing and item Details at the click of a button

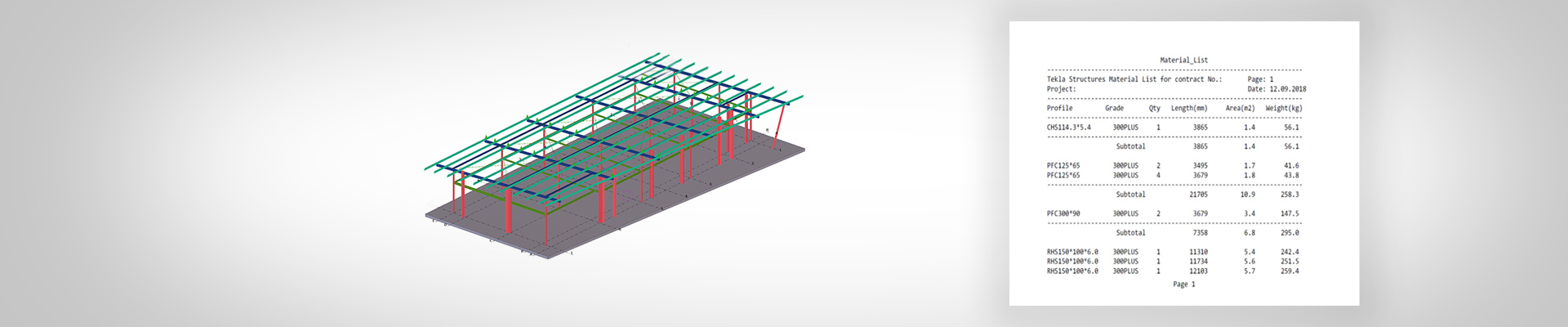

A New Cost Effective Way To Generate Accurate Material List

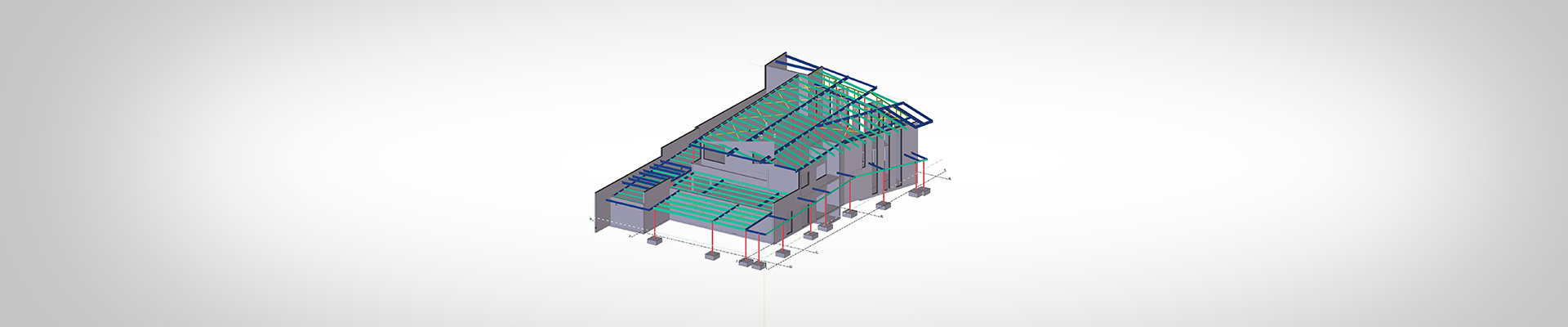

Delivering the latest in Tekla 3D Modeling software

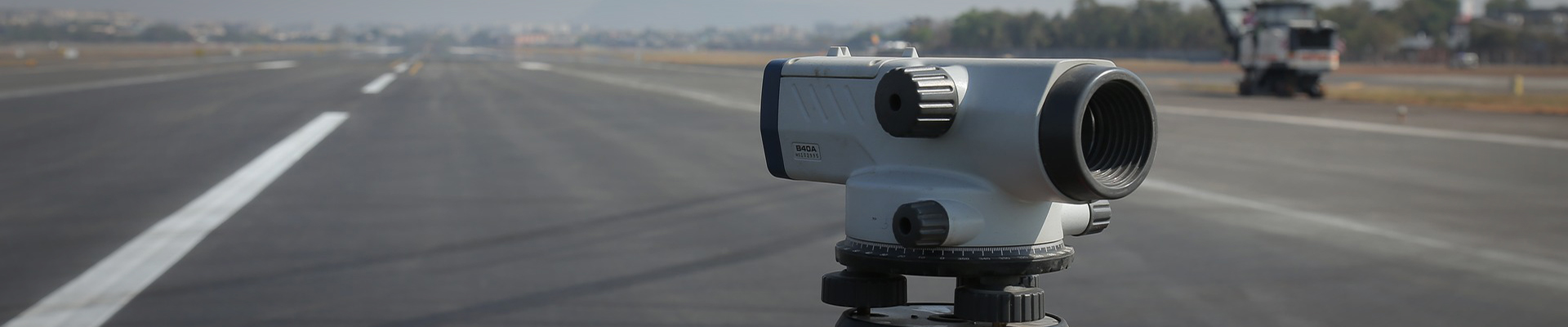

Utilizing the latest in 3D Laser measuring equipment to ensure fast and accurate site measurements

Welcome to ADRAFT structural steel and shop drawing service.

Adraft delivers detailed and accurate 3D modelling and shop drawings to steel fabricators Builders and Architects

At ADRAFT I specialise in servicing steel fabricators throughout Australia. With over 27 years’ experience in the steel fabrication industry. 12 Years of this running my own structural steel fabrication business. I understand the importance of producing fast and accurate shop drawings to my clients.

At Adraft you not only get fast and accurate shop drawings but utilising my experience in the industry to supply drawings that help minimise the fabrication and erection time by liaising with the Builder, Architect and Engineer to design the steel work for the best outcome for the fabricator.

Contact Us Now

Shop Drawing Service

With the ability to talk directly with your clients, Builders, Architects and engineers; and by offering a full site measuring service and the availability to answer any questions 24/7 I believe that at ADRAFT I can offer a superior service to your company helping to ensure your projects are on time and on budget.

With an emphasis on accuracy and drawing presentation, ADRAFT is committed to building long-term relationships through excellent customer service.

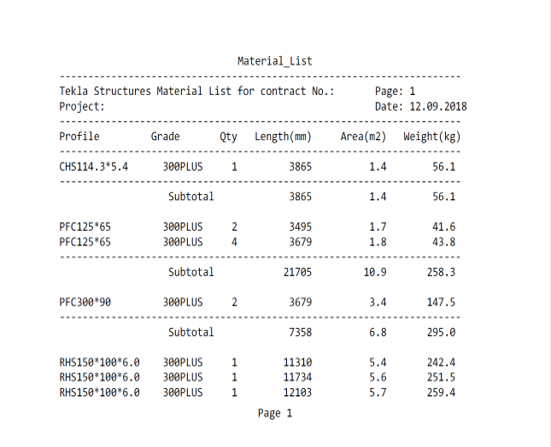

Material List
